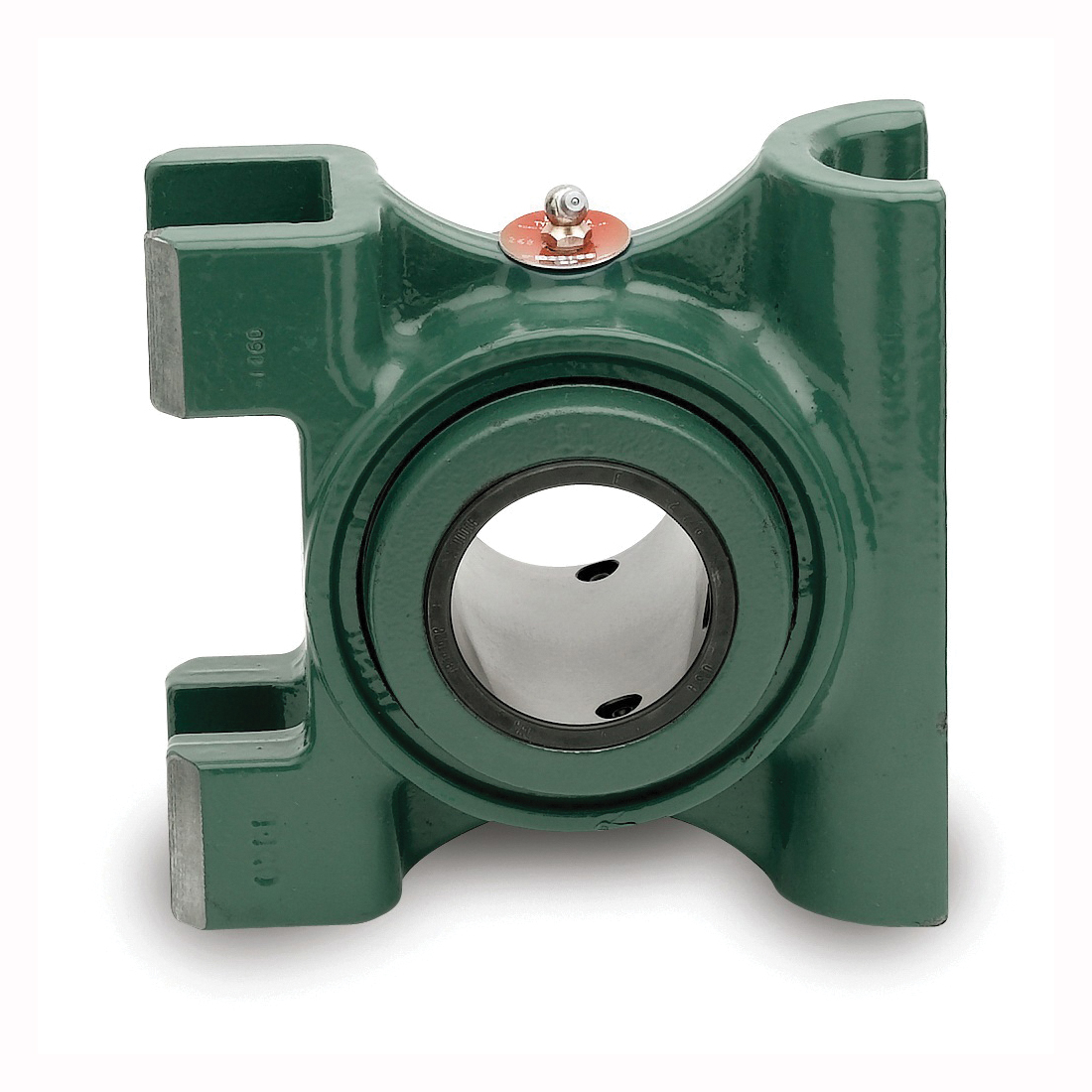

Dodge® 023076 107 Non-Expansion Type E-Xtra Wide Slot Top Angle Take-Up Ball Bearing, 1-3/8 in Dia Bore, 5.09 in L x 3 in W x 4.13 in H, 5500 lb Dynamic/26000 lb Static Load

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD023076
  • Alt Part Number: WSTU-E-106R
  • MPN: 023076
  • UPC: 782475697304
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Type E-Xtra bearings are manufactured with high-capacity tapered roller bearing inserts which allow for combination of radial and thrust loads, featuring the highest load ratings in the industry achieved by world class design and manufacturing.

Dodge® Top Angle Take-Up Ball Bearing, Non-Expansion Type E-Xtra Wide Slot, Series: 107, 1-3/8 in Bore, 5.09 in Length, 3 in Width, 4.13 in Height, 5500 lb Dynamic/26000 lb Static Load, For Use With: CP308 Center Pull Take-Up Frames, Steel Bearing, -100 to 200 deg F, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      1-3/8 in
Finish      :      Uncoated
Height      :      4.13 in
Length      :      5.09 in
Load Capacity      :      5500 lb Dynamic/26000 lb Static
Series      :      107
Suitable For Use With      :      CP308 Center Pull Take-Up Frames
Temperature Rating      :      -100 to 200 deg F
Type      :      Non-Expansion Type E-Xtra Wide Slot
Width      :      3 in
  • Exclusive Baldor-Dodge® XTS triple lip seal protects against contamination in dusty or wet environments
  • Oversized dual Springlok™ collars act as fingers for added protection
  • Bearings are completely assembled, factory adjusted and pre-lubricated
  • Case hardened rollers and races
  • 65 deg setscrew angle Springlok™ collar/ flingers - more holding power than 90 to 120 deg
