Warner Electric® 5191-170-007 WAR5191-170-007
  1. pin-int

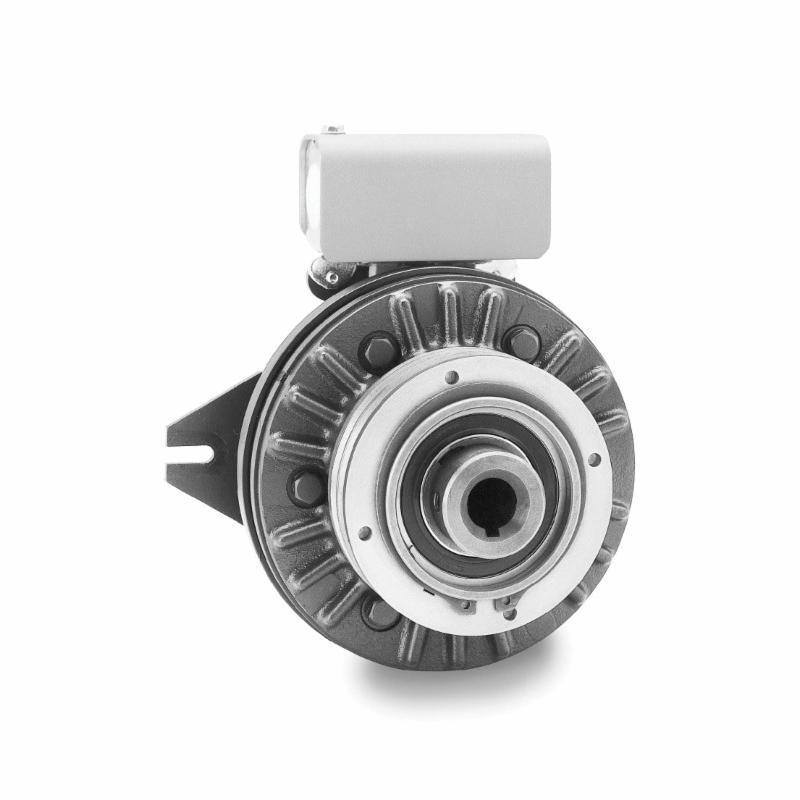

Warner Electric® 5191-170-007 WAR5191-170-007

Warner Electric® 5191-170-007 ATB Advanced Technology Brake With 3/16 in Keyway, 90 VDC, 25 ft-lb Torque, 3600 rpm Max, 3/4 in Dia Bore

  • Manufacturer: Altra Industrial Motion
  • Brand Name: Warner Electric®
  • Part Number: WAR5191-170-007
  • Alt Part Number: 30188452
  • MPN: 5191-170-007
  • UPC: 786582041449
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

ATB Brakes are completely assembled at the factory designed to match the torque ratings of standard motors, reducers and other power transmission components. They feature a replaceable friction face designed to provide superior wear life with reduced engagement noise level wear and consistent torque capacity. This brake (5191-170-007) has a bore size of 3/4 in and a keyway of 3/16 in squared.

Warner Electric® Advanced Technology Brake, Series: ATB, 3/4 in Bore, 4.822 in OD, 2.843 in Overall Length, 25 ft-lb Torque, 90 VDC, 3600 rpm Maximum, Shaft Mounting, Steel

Bore Diameter      :      3/4 in
Material      :      Steel
Maximum Speed      :      3600 rpm
Mounting Type      :      Shaft
Outside Diameter      :      4.822 in
Overall Length      :      2.843 in
Series      :      ATB
Torque Rating      :      25 ft-lb
Voltage Rating      :      90 VDC
  • Rugged two piece replaceable steel wear surface and precision cast iron components
  • Two piece molded friction disc replaceable without disassembly of unit in most applications, long life and low noise
  • Sealed heavy duty bearing with high temperature lubricant maintain tight concentricity's and running efficiency
  • Sealed and high temperature coil with tough Teflon lead wires for easy power hookup
  • Rugged spline drive for maximum durability
  • Autogaps™ automatically adjust for wear
  • Easy installation
  • Maintenance free
  • Electromagnetic actuation
  • Spring return
