Thomson® C250 THOC250

Thomson® C250 External Type C Retaining Ring, 1/4 in Dia Shaft, 0.55 in OD, Steel

  • Manufacturer: Thomson Industries
  • Brand Name: Thomson®
  • Part Number: THOC250
  • MPN: C250
  • UPC: 662486902164
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

External retaining rings fit into the retaining ring grooves on the outside diameter of super smart, super and Precision Steel Ball Bushing® bearings open and closed type to provide external mounting retention. Available in standard and stainless steel versions.

Thomson® Retaining Ring, External Type C, 1/4 in Diameter Nominal Shaft, 0.55 in OD, For Use With: Super Ball Bushing® SUPER4 and Ball Bushing® A4812, XA4812, OPN4812 Precision Steel Linear Bearings, Steel, 0.469 in ID x 0.035 in THK Dimensions

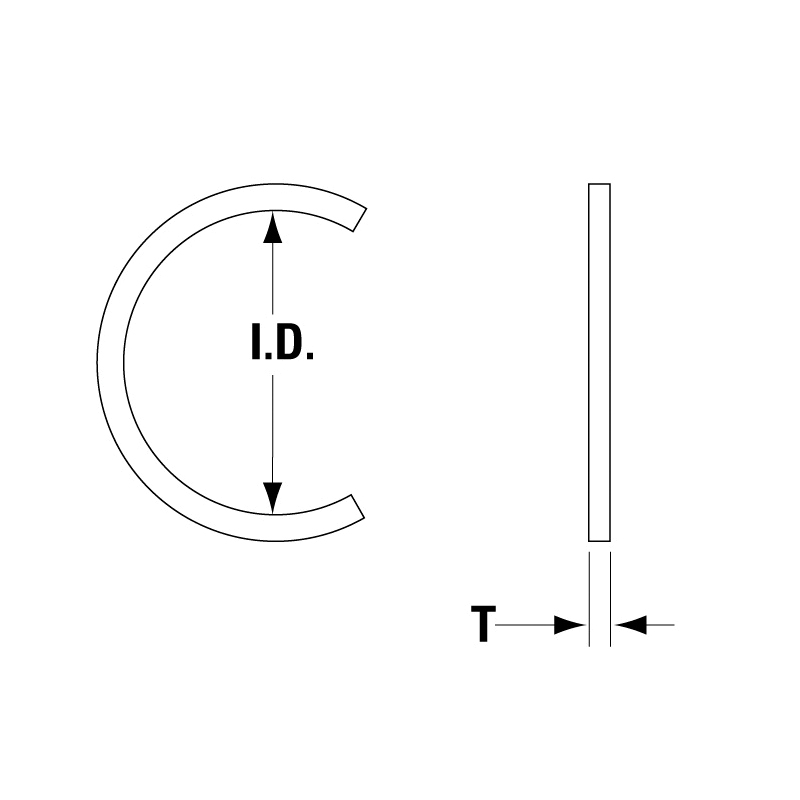

Dimensions      :      0.469 in ID x 0.035 in THK
Material      :      Steel
Nominal Shaft Diameter      :      1/4 in
Outside Diameter      :      0.55 in
Suitable For Use With      :      Super Ball Bushing® SUPER4 and Ball Bushing® A4812, XA4812, OPN4812 Precision Steel Linear Bearings
Type      :      External Type C
  • External retaining rings that fit in retaining ring grooves on bearing sleeve
