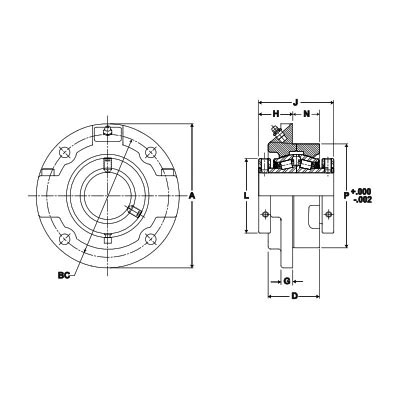

Sealmaster® 559906 MORRFP112C

Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive Type E bearings. The exclusive features include unitized replaceable inserts, self aligning capability, split housing and the Sealmaster® alignment pin which provides for a direct path for lubrication into the bearing and helps prevent outer ring rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric with a wide variety of housing, sealing and lubrication options as illustrated on the pages to follow.

Sealmaster® Tapered Roller Bearing Unit, Non-Expansion Round/Straight Bore, Series: RFP, 1-3/4 in Bore, 5-3/8 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 6-3/8 in Overall Length/Diameter, 3-1/2 in Overall Depth, Double Set Screw Locking Device, Cast Iron Bearing, 8070 lb Dynamic Load, 2500 rpm Maximum, 250 deg F, Uncoated

• Sealmaster® RPB series contains heavy duty tapered roller bearings for radial, thrust and combination loading
• Durable cast iron split housings for quick insert replacement
• Replaceable cartridge insert
• Positive lubrication system provides direct grease path to the bearing
• 2-locking collars are standard on all units with 2-setscrews at 120 deg for balanced three point contact
• Single lip race mounted contact seals for dry, dirty and wet conditions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_550242_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_550242_Catalog.pdf
