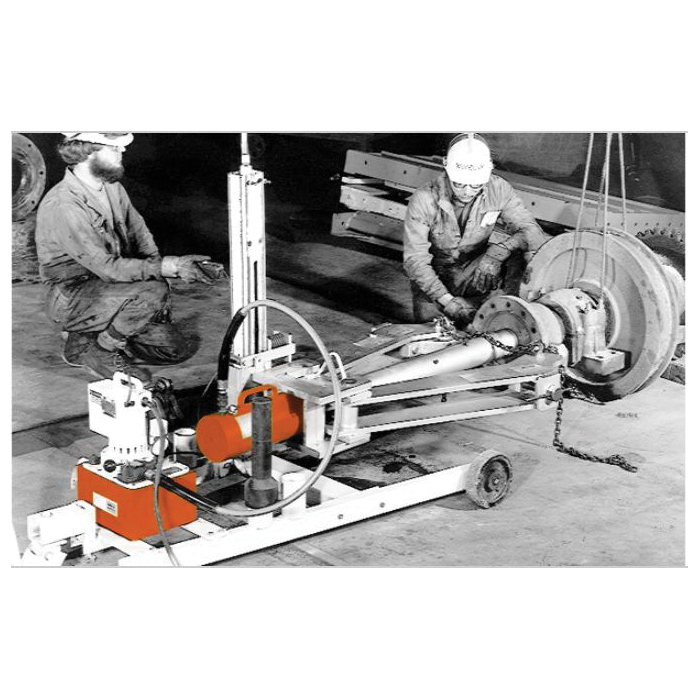

Power Team® PH1002 SPXPH1002

Power Team® Universal Puller, Series: PH Series Enforcer 100, Specifications: 100 ton Capacity 94 in OAL, 8 in Dia Wheel, 12 to 36 in Vertical Stroke Adjustable, Maximum 12 in THK Workpiece, 115 V, 25 A, 9 Piece

• Adjustable jaws mean they always pull-on a flat surface
• Retaining chain holds jaws in place during positioning
• Grip-O-Matic® feature means jaws grip progressively tighter as more pulling force is applied
• 100 ton hydraulic cylinder is single-acting, spring return type with a maximum working pressure of 10000 psi (700 bar)
• Lifting bracket allows puller to be lifted if the workpiece center is more than 36 in (914 mm) off the floor
• Adjusting screw allows operator to move vertical position of the puller
• Spring loaded feature means Enforcer 100 will align itself on uneven pulls
• Hydraulic pump is a 2-stage, high pressure unit controlled by remote hand switch with 25 ft (7.6 m) cord
• Tow bar provides puller with plenty of mobility
• Pushing adapters have a diameter of 4-1/8 in and 2-1/2 in (105 and 63.5 mm)
