NTN AW01 NTNAW01

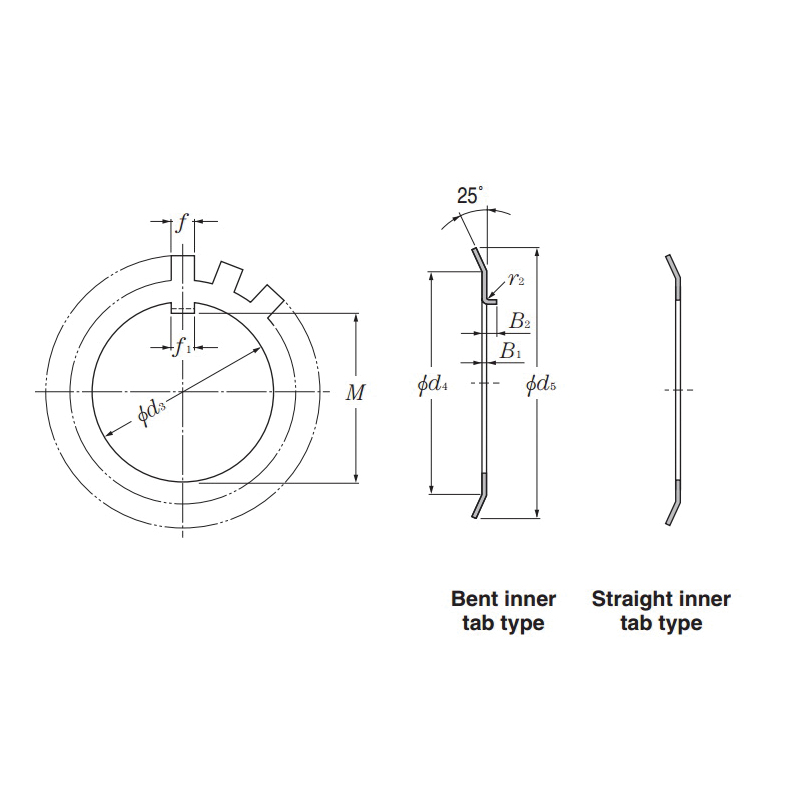

NTN AW01 Bent Inner Tab Lock Washer, 12 mm Dia Bore, 25 mm OD, 17 mm Dia Face, 1 mm THK, Low Carbon Steel
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNAW01
- MPN: AW01
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
-
Price:
NTN Lock Washer, Bent Inner Tab, Series: AW Series, 12 mm Bore Dia, 25 mm Outside Dia, 17 mm Face Dia, 1 mm Thickness, 9 Tangs, Low Carbon Steel
| Bore Diameter | : | 12 mm |
| Face Diameter | : | 17 mm |
| Material | : | Low Carbon Steel |
| Number of Tangs | : | 9 |
| Outside Diameter | : | 25 mm |
| Series | : | AW Series |
| Thickness | : | 1 mm |
| Type | : | Bent Inner Tab |
- Lock washers are used to stop nuts from rotating
- 3 mm W tang
- 3 mm key
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NTN_AL44_Catalog.pdf
