Dodge® 049433 DOD049433
  1. pin-int

Dodge® 049433 DOD049433

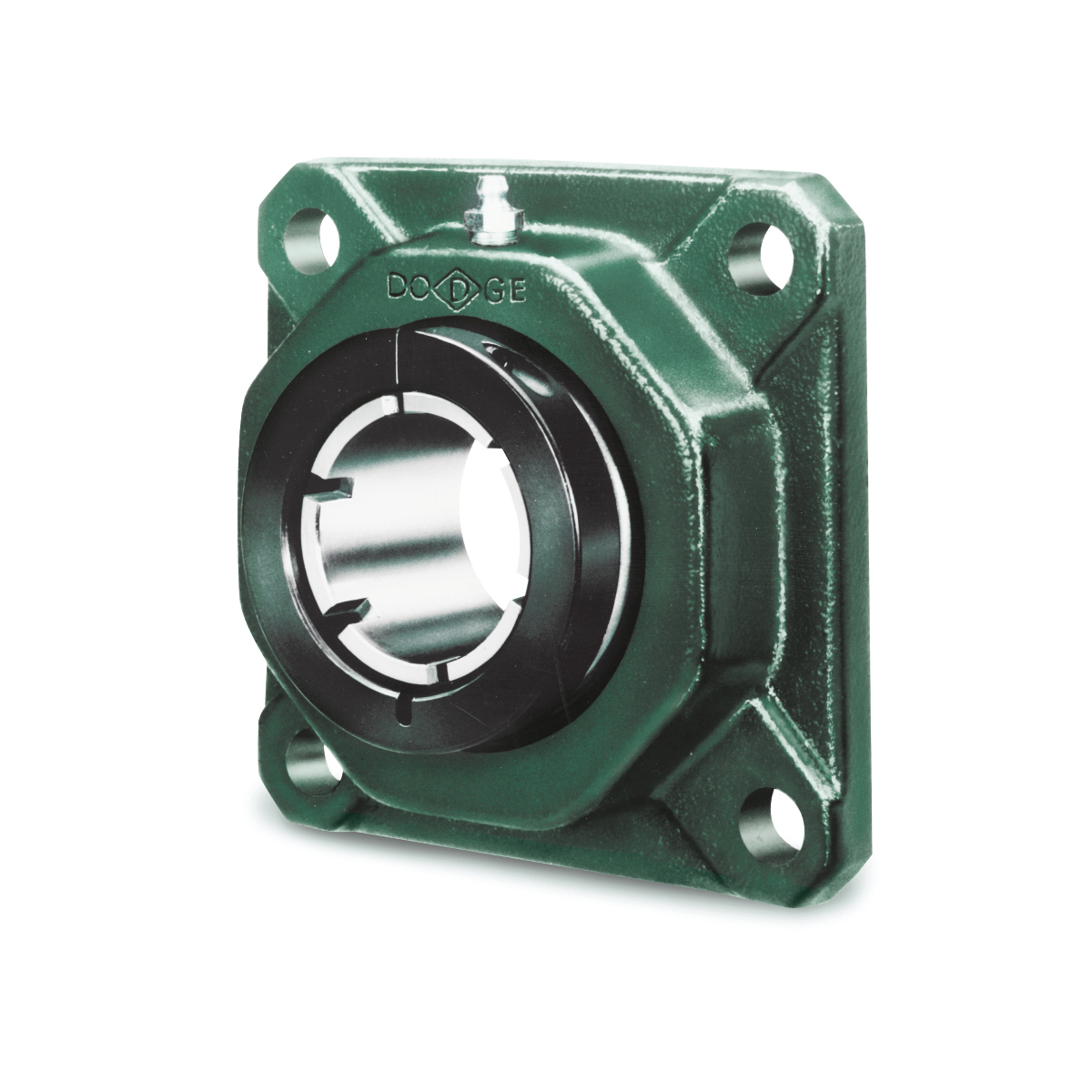

F4B-SXR-203-FF Dodge® 049433 211 Series Normal Duty Non-Expansion Ball Bearing Unit With Flingers, 2-3/16 in Dia Bore, 5.13 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 6-1/2 in OAL/Dia

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD049433
  • Alt Part Number: F4B-SXR-203-FF
  • MPN: 049433
  • UPC: 782475472109
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Dodge® Ball Bearing Unit, Normal Duty Non-Expansion, Series: 211 Series, 2-3/16 in Bore Dia, 5.13 in Bolt Center-to-Center Length, 4-Bolt Base Flange Mounting Type, 6-1/2 in Overall Length/Diameter, 2.65 in Overall Depth, 6-1/2 in Overall Height, Eccentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 9755 lb Dynamic/6588 lb Static, 4000 rpm Maximum, Powder Coated

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      5.13 in
Bore Diameter      :      2-3/16 in
Finish      :      Powder Coated
Flange Mounting Type      :      4-Bolt Base
Load Capacity      :      9755 lb Dynamic/6588 lb Static
Locking Device      :      Eccentric Collar
Maximum Speed      :      4000 rpm
Overall Depth      :      2.65 in
Overall Height      :      6-1/2 in
Overall Length/Diameter      :      6-1/2 in
Seal Material      :      Nitrile Rubber
Series      :      211
Type      :      Normal Duty Non-Expansion
  • DualGuard™ seal with rubberized flinger is standard
  • Precision hardened and honed-series 200 mounted ball bearings in globally interchangeable, ISO dimensions
  • Wide inner ring design
  • Dodge® DualGuard™ land-riding, positive contact seal
  • Stronger and flexible ball cage
  • Simplified anti-rotation device
