Browning® 1188283 BROSHR2HUB

Browning® shear pin hubs are designed to shear a necked pin at a predetermined load. This protects equipment from overloads. Consisting of a hub assembly, a sprocket and shear pin, the shear pin bridges between the sprocket and hub assembly. The shear pin is available in load increments, so the closest one to your application requirements must be chosen. Resetting the shear pin hub is accomplished manually by replacing the shear pin. Best applied to applications where infrequent overloads are encountered. Torque capacity is up to 50720 in-lb.

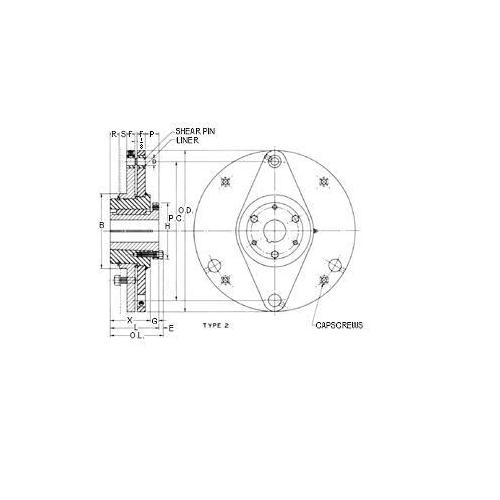

Browning® Shear Pin Hub, Type 2, 1-3/8 to 3-5/8 in Bore, 16-1/4 in OD Flange, 5-5/32 in Length Through Bore, 26080 to 155900 in-lb Torque, 5/8 in Bolt, 4 Bolt Holes, Steel

• Helps prevent damage to machinery due to sudden overload by shearing a necked pin at the predetermined load
• Sprocket rotates freely after pin breakage, allowing the drive to idle
• Universal mounting
• Single position
• Reversibility and repeatability
• For R2 bushing
