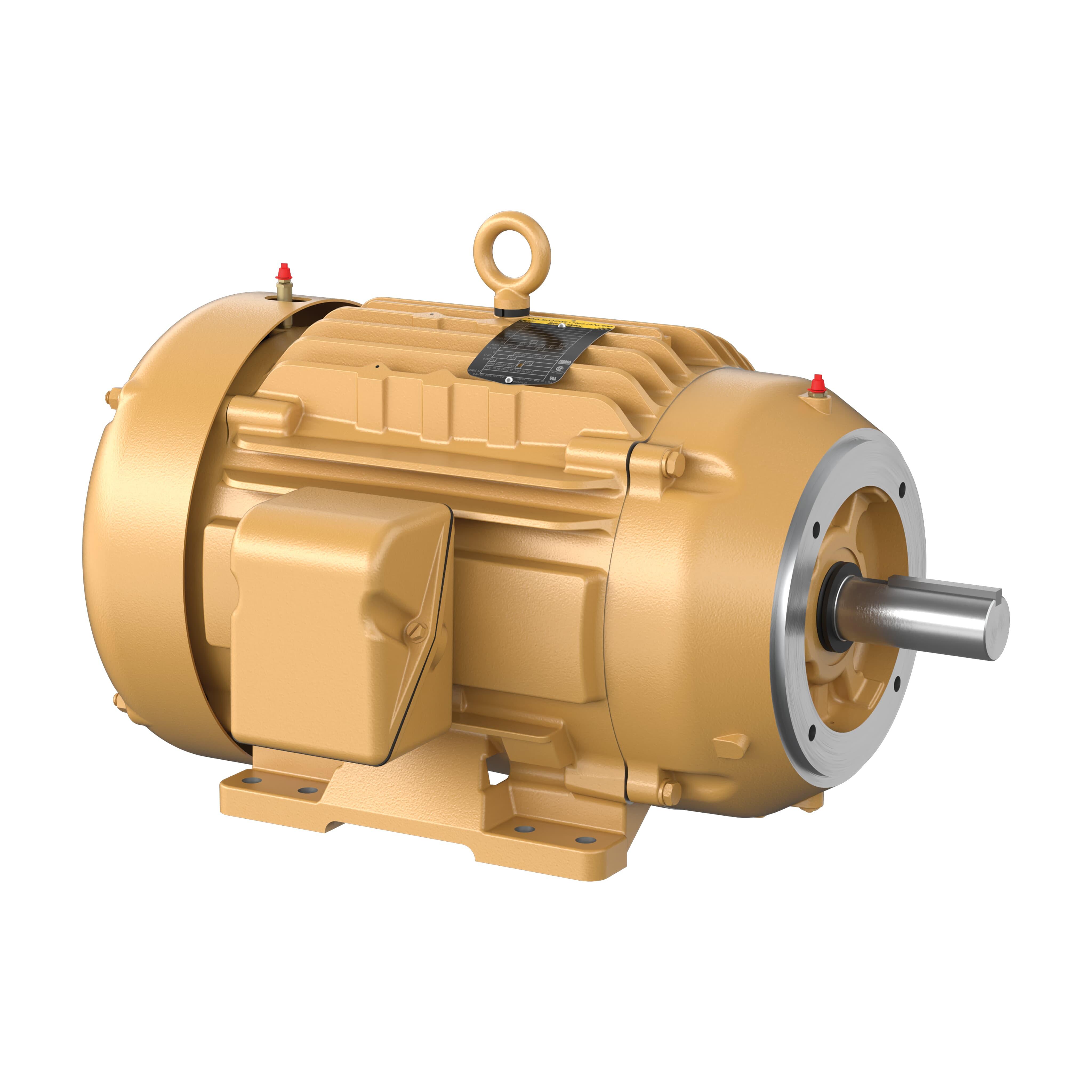

Baldor-Reliance CEM4103T BALCEM4103T
Baldor-Reliance CEM4103T Type 1046M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 284TC Frame, 1770 rpm Speed, C-Face Foot Rigid Base Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALCEM4103T
- MPN: CEM4103T
- UPC: 781568134429
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: EACH
-
Price:
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
Baldor-Reliance AC Motor, Type 1046M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 25 hp, 208/230/460 VAC, 64/62/31 A, 60 Hz Frequency, 3 ph, 1770 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 284TC Frame, 1-7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 74.2 ft-lb Torque, C-Face Foot Rigid Base Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 27.76 in L x 20.05 in W x 17.16 in H Dimensions
| Amperage Rating | : | 64/62/31 A |
| Application Type | : | General Purpose AC Motors, Fan & Blower Motors, Compressor Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 27.76 in L x 20.05 in W x 17.16 in H |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
| Frame | : | 284TC |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 25 hp |
| Insulation Class | : | Class F |
| Material | : | Iron |
| Mounting Type | : | C-Face Foot Rigid Base |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 1-7/8 in |
| Speed | : | 1770 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Torque Rating | : | 74.2 ft-lb |
| Type | : | Type 1046M Continuous Duty |
| Voltage Rating | : | 208/230/460 VAC |
- Locked DE bearing to allow mounting in any configuration
- 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
-
